Contact UsFeature

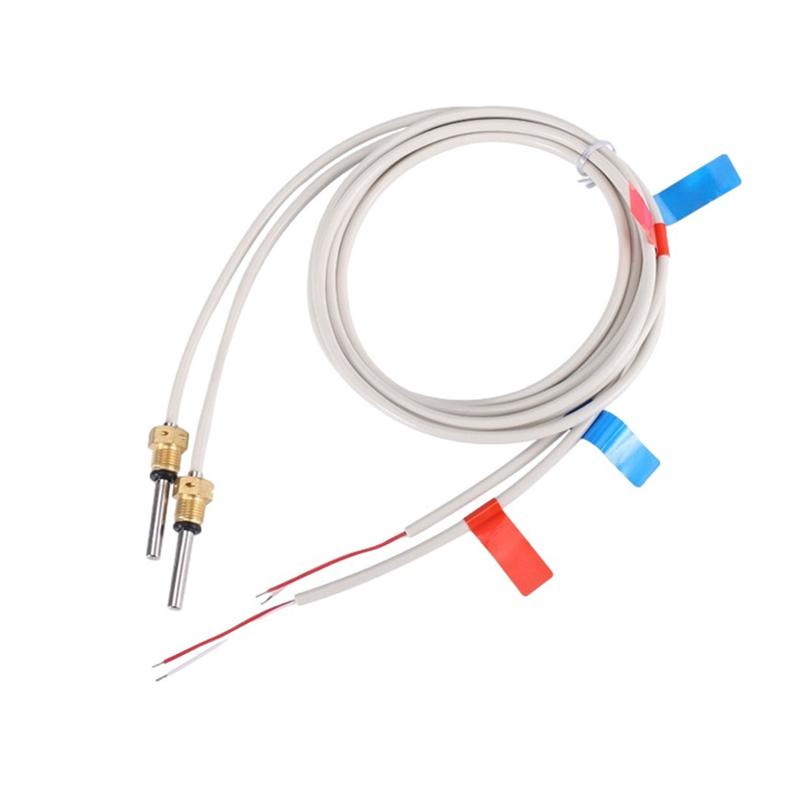

Type of probe: Pt100 or Pt1000
Number of conductors: 2 core wire
Precision: Class A / Class B
Housing material: stainless steel 304
Probe: φ3*50mm
Wire length 2M
Specifications
| Type | Measuring Range°C | Accuracy | Tolerance | Temperature Coefficient |
| Pt100 | -50~+500 | Class A | ±(0.15+0.002) |t| | 3.85·10-3K-1 |
| Class B | ±(0.30+0.005) |t| | 3.85·10-3K-1 | ||
| Pt1000 | -50~+500 | Class A | ±(0.15+0.002) |t| | 3.85·10-3K-1 |
| Class B | ±(0.30+0.005) |t| | 3.85·10-3K-1 | ||
| ITEM | MORE OPTIONS | |||
| Housing material | Stainless Steel Casing /Copper Nickel/Plastic/Epoxy Resin /ABS Plastic /Brass ,etc~ | |||
| Probe | copper probe, screw probe, U type probe, thread probe, stainless steel, ABS probe, ring lug probe, flange type, or customized. | |||
| Diameter of thermowell | Ø16mm, Ø12mm, Ø8mm, Ø6mm, Ø5mm, Ø4mm, Ø3mm and etc. | |||
| Cable | 2-core cable / 3-core cable / 4 core cable | |||
| Cable type | PVC cable, Silicone cable, TPE cable, PTFE cable, Teflon cable, Fiberglass cable and etc | |||
| Connector | JST,Molex,RJ11, RJ12, RJ45, RJ50, XH, SM, PH, Aviation plug, terminal blocks, EL,TYCO, AMP,TJC32 ,54,SMR SMP,XH-2Y,XH-4Y,CWB,Dupont and etc | |||
